Surenoo DSI Display 8.0" inch 800*1280 high-definition IPS LCD Display Module Screen with Capacitive Touch Panel CTP DSI MIPI Interface for Orange Pi OPI-5 / OPI-5B / OPI-5Plus / OPI-5Pro Development Board

WISHLIST
Model No.: SDSO080A_8001280
Model Size: 8.0 Inch
Resolution: 800*1280 IPS
Interface: Mipi DSI
Touch Type: Capacitive Touch Panel (CTP)
98 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Tips
    1. The Orange Pi Official OS cannot be used directly for DSI Display, and kernel drivers need to be updated.
    2. Please request the Image Download Link from our Customer Service after your purchase.
    3. Orange Pi Board is not including in the Package, please buy it in Orange Pi Official Store.
    4. 8.0 inch 800*1280 Portrait DSI Display
         Linux OS Support Landscape & Portrait Rotation
         Android OS Support Portrait Only

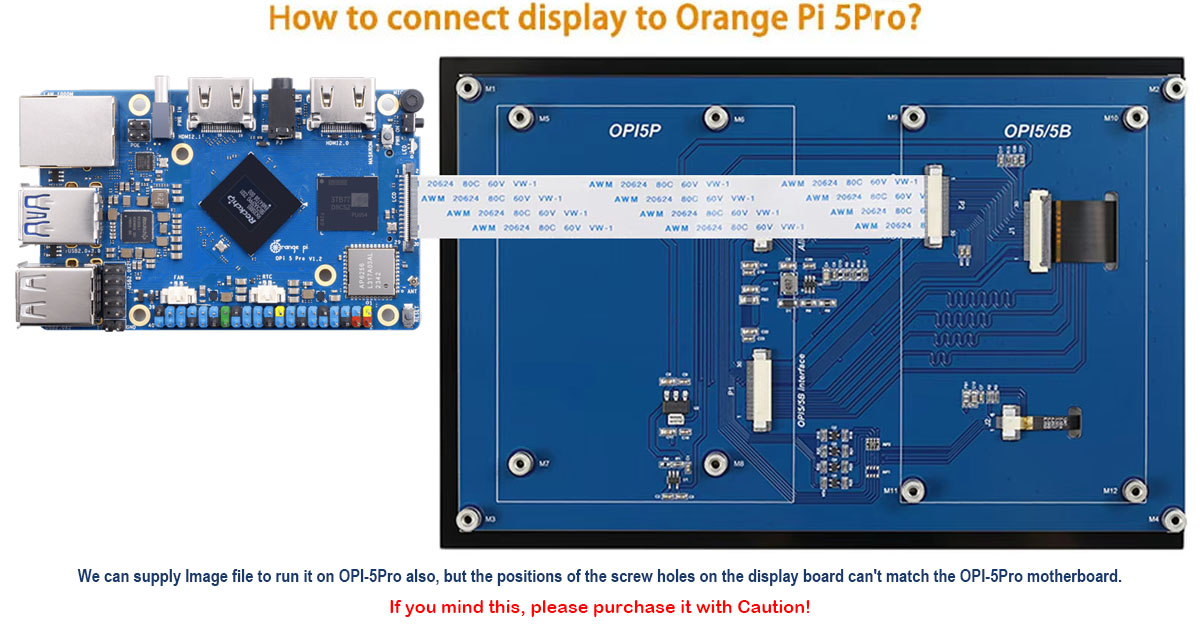

    5. For​ OPI-5Pro, we can supply Image file to run it also, but the positions of the screw holes on the display board can't match the OPI-5Pro motherboard.
        If you mind this, please purchase it with caution!
    • Overview
    Surenoo DSI Display 8.0" inch 800*1280 high-definition IPS LCD Display Module Screen with Capacitive Touch Panel CTP DSI MIPI Interface for Orange Pi OPI-5 / OPI-5B / OPI-5Plus / OPI-5Pro Development Board
      • Product Parameters
      Item of General Information Contents Unit
      LCD Display Size (Diagonal) 8.0 Inch
      LCD Display Type
      		 TFT/TRANSMISSIVE
      		 -
      LCD Display Mode Normally Black
      		 -
      Recommended Viewing Direction ALL VIEW (IPS) O'Clock
      Model No. SDSO080A_8001280 -
      MPN No. SUR80HD001-WCT
      		 -
      LCM Module Size (W×H×T) 125.21×189.79×7.70 MM
      Active Area (W×H)
      		 107.64×172.22
      		 MM
      Number of Pixels (Resolution) 800(RGB)×1280 Pixel
      Pixel Pitch (W×H) 0.13455×0.13455 MM
      Color Pixel Arrangement RGB Stripe -
      LCD Driver IC ILI9881C -
      Interface Type MIPI 4 Lane -
      Color Numbers 16.7M -
      Backlight Type White LED -
      Touch Type Capacitive Touch Panel (CTP) --
      CTP Surface Hardness 6H -
      CTP Transparency ≥82%
      		 -
      CTP Driver IC GT9271
      		 -
      CTP Interface IIC -
      CTP Support Points 5 -
      • External Dimensions

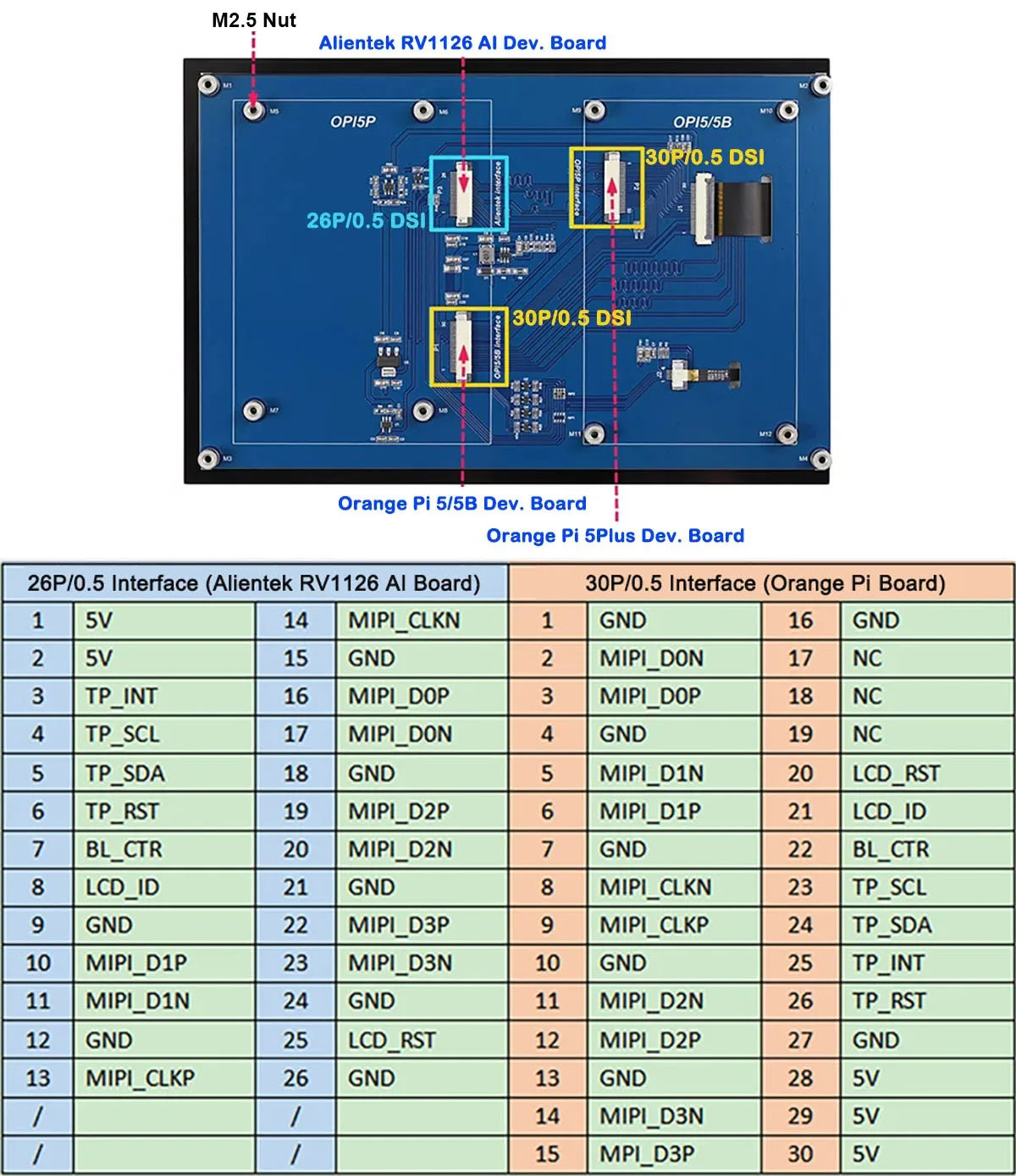

      • Interface Description

      • Application

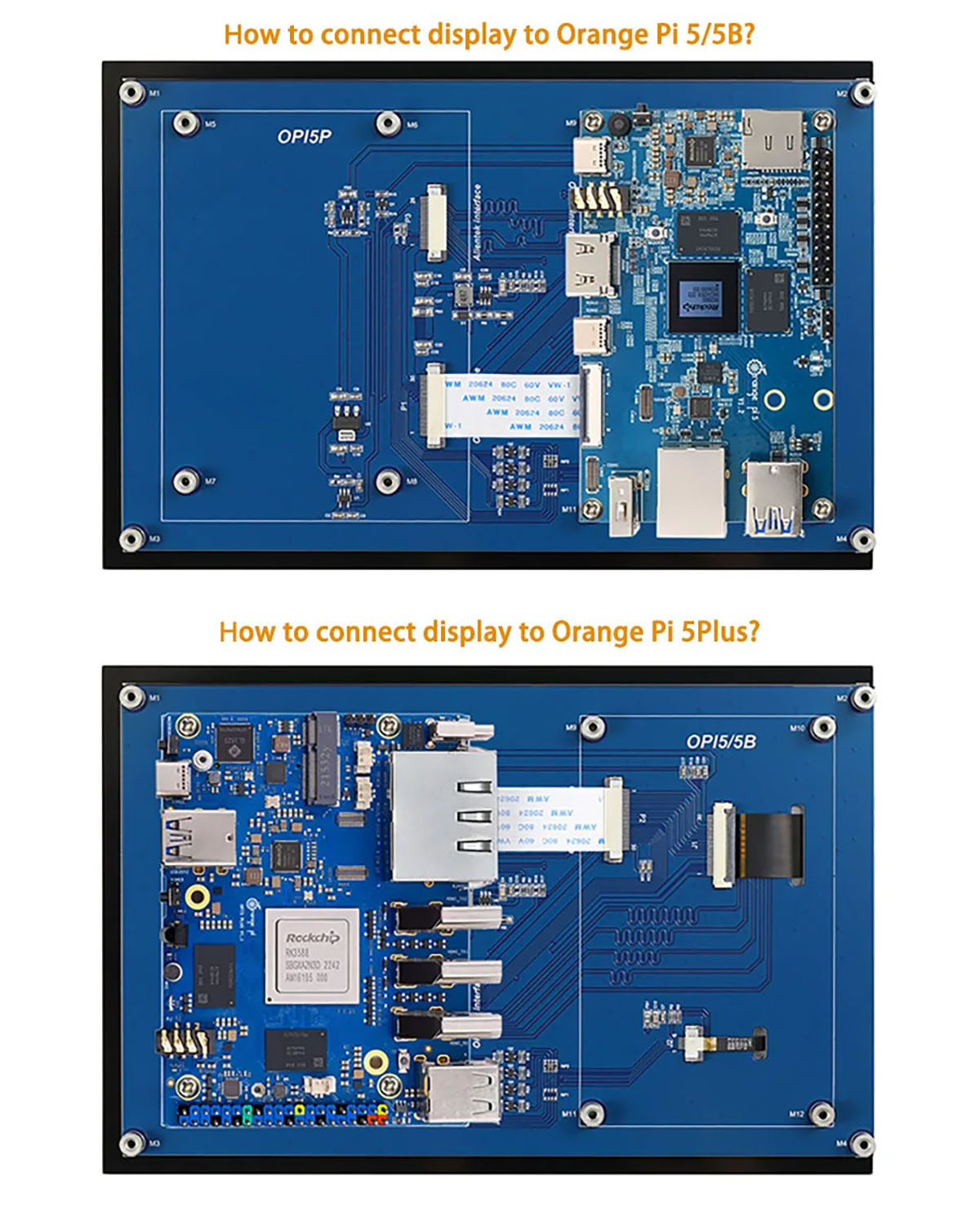

      1. How to connect display with Orange Pi 5/5B/5Plus/5Pro?


      2. How to connect display with Alientek RV1126 AI Dev. Board?

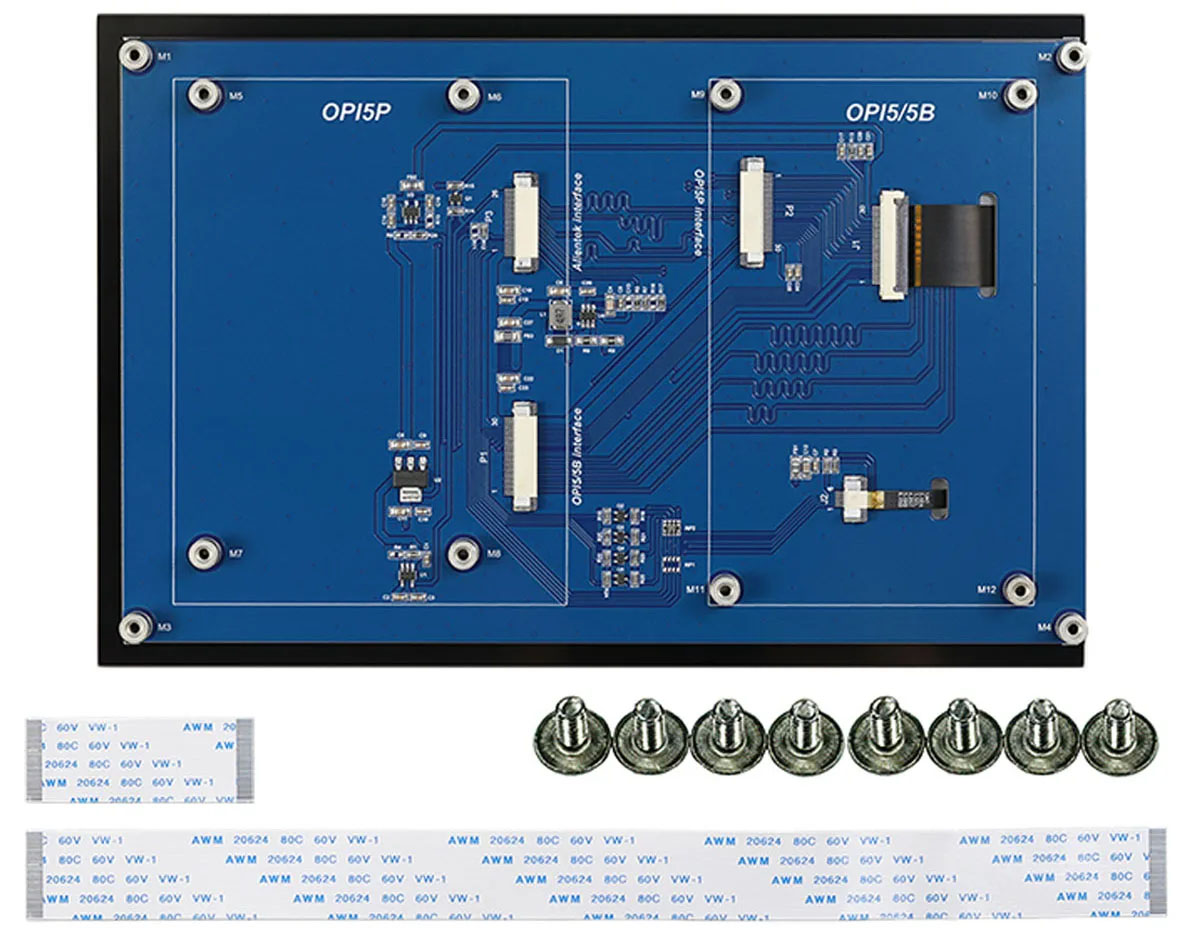

      • Packing List
      Orange Pi Board & Alientek RV1126 AI Dev. Board are NOT including in the Package.
