Surenoo Arduino Display 3.2"(ILI9481)-3.5"(ILI9486) inch 320*480 TFT Color LCD Display Module Screen support Arduino 16-Bit Parallel for Arduino Mega2560

WISHLIST

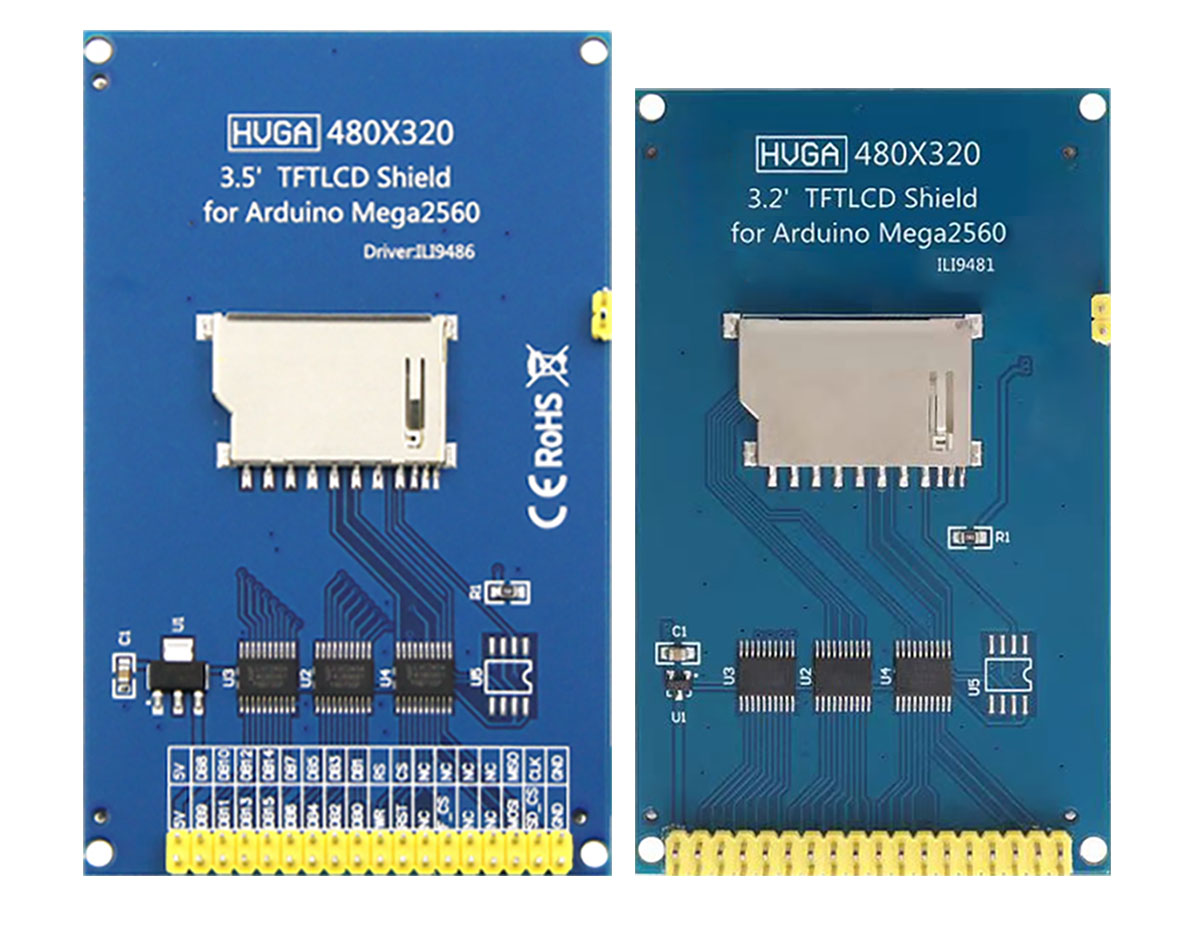

3.2"(ILI9481)-3.5"(ILI9486) inch 320*480 TFT Color LCD Display Module Screen
Display Size: 3.2/3.5 Inch Arduino Display Module
Resolution: 320*480
Controller: ILI9481/ILI9486
Interface: Arduino Mega2560 16-Bit Parallel
Without Touch Panel
95 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    Surenoo Arduino Display 3.2"(ILI9481)-3.5"(ILI9486) inch 320*480 TFT Color LCD Display Module Screen support Arduino 16-Bit Parallel for Arduino Mega2560


      • Specification
      Item Parameter
      Manufacturer Surenoo
      Display Type Arduino Display Module
      Continuity Supply More than 10 years
      Model Details SAR0320A-320480: 3.2"(ILI9481) inch 320*480 TFT Color LCD Module for Arduino Mega2560
      SAR0350B-320480: 3.5"(ILI9486) inch 320*480 TFT Color LCD Module for Arduino Mega2560
      Module PCB Size
      		 SAR0320A-M320480: 54.25x89.92 (mm)
      SAR0350A-M320480: 60.30x96.60 (mm)
      Active Area
      		 SAR0320A-M320480: 45.12x67.68 (mm)
      SAR0350A-M320480: 48.96x73.44 (mm)
      Display Type TN
      Display Color RGB 65K Color
      Interface 16-Bit Parallel for Arduino Mega2560
      Voltage 5.0V
      Operating Temperature
      -20℃~60℃
      Storage Temperature
      -30℃~70℃

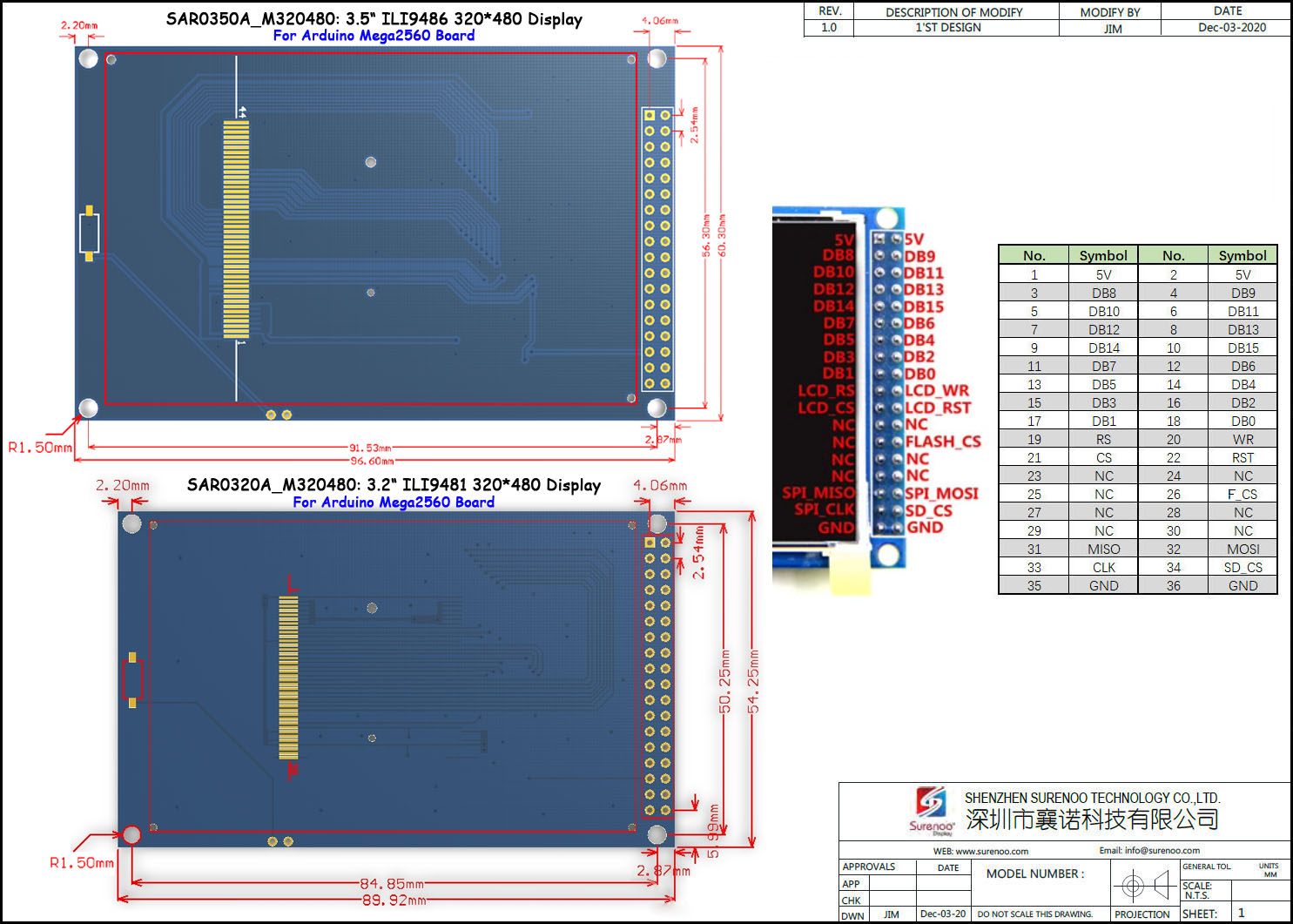

      • Outline Drawing

      • Interface
      Pin No. Symbol Description
      1-2 5V Positive power supply
      3-10 DB8-DB15
      		 Data Bus
      11-18 DB7-DB0 Data Bus
      19 RS LCD register / data selection signal, Low level: register, high level: command
      20 WR LCD write control signal
      21 CS LCD screen select control signal, low level enable
      22 RST LCD reset control signal, low reset
      23-25, 27-30 NC Undefined, reserved
      26 F_CS SPI flash chip select control signal
      31 MISO SPI bus input signal
      32 MOSI SPI bus output signal
      33 CLK SPI bus clock signal
      34 SD_CS SD card select control signal, low level enable
      35-36 GND Power ground
