Surenoo Graphic OLED Module 3.83" 320132 320*132 320X132 Graphic LCD Module Display Screen Panel PM-OLED 4-Wire Serial SPI SSD1320 Controller SOG320132A_M383 P383
Surenoo Graphic OLED Module 3.83" 320132 320*132 320X132 Graphic LCD Module Display Screen Panel PM-OLED 4-Wire Serial SPI SSD1320 Controller SOG320132A_M383 P383
Display Size: 3.83"
Model No.: SOG320132A_M383
Display Format: 320*132 Dots
Outline: 124.00X42.00MM
Controller: SSD1320 X2 or Equal
Model No.: SOG320132A_M383
Display Format: 320*132 Dots
Outline: 124.00X42.00MM
Controller: SSD1320 X2 or Equal
12 sold
Quantity
Detail
Customer Reviews
- Overview
It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
- Specification
| Gross Weight | 0.080Kg |
| Manufacturer | Surenoo |
| Display Type | Graphic OLED Module / Graphic OLED Panel |
| Continuity Supply | More than 10 years |
| Part No. | SOG320132A_M383 / SOG320132A_P383 |
| Diagonal Size (Visual Area) |
3.83" |
| Display Format | 320*132 Dots |
| Interface |
4-Wire Serial SPI |
| IC or Equivalent | SSD1320 X2 or Equal |
| Voltage(Type) | 3.3V |
| Outline Dimension | SOG320132A_M383, 124.00(W)x42.00(H)x3.23(T)mm (OLED Module) |
| SOG320132A_P383, 105.52(W)x41.67(H)x2.03(T)mm (OLED Panel) | |
| Visual Area | 90.90x38.07mm |
| Active Area |
89.90x37.07mm |
| Dots Size | 0.281x0.281mm |
| Dots Pitch |
0.261x0.261mm |
| Display Type | PM-OLED Panel |
| Colors Code | White |
| IC Package | COG |
| Viewing Direction | Full Viewing Angle |
|
Operating Temperature
|
-40℃~70℃
|
|
Storage Temperature
|
-40℃~80℃
|

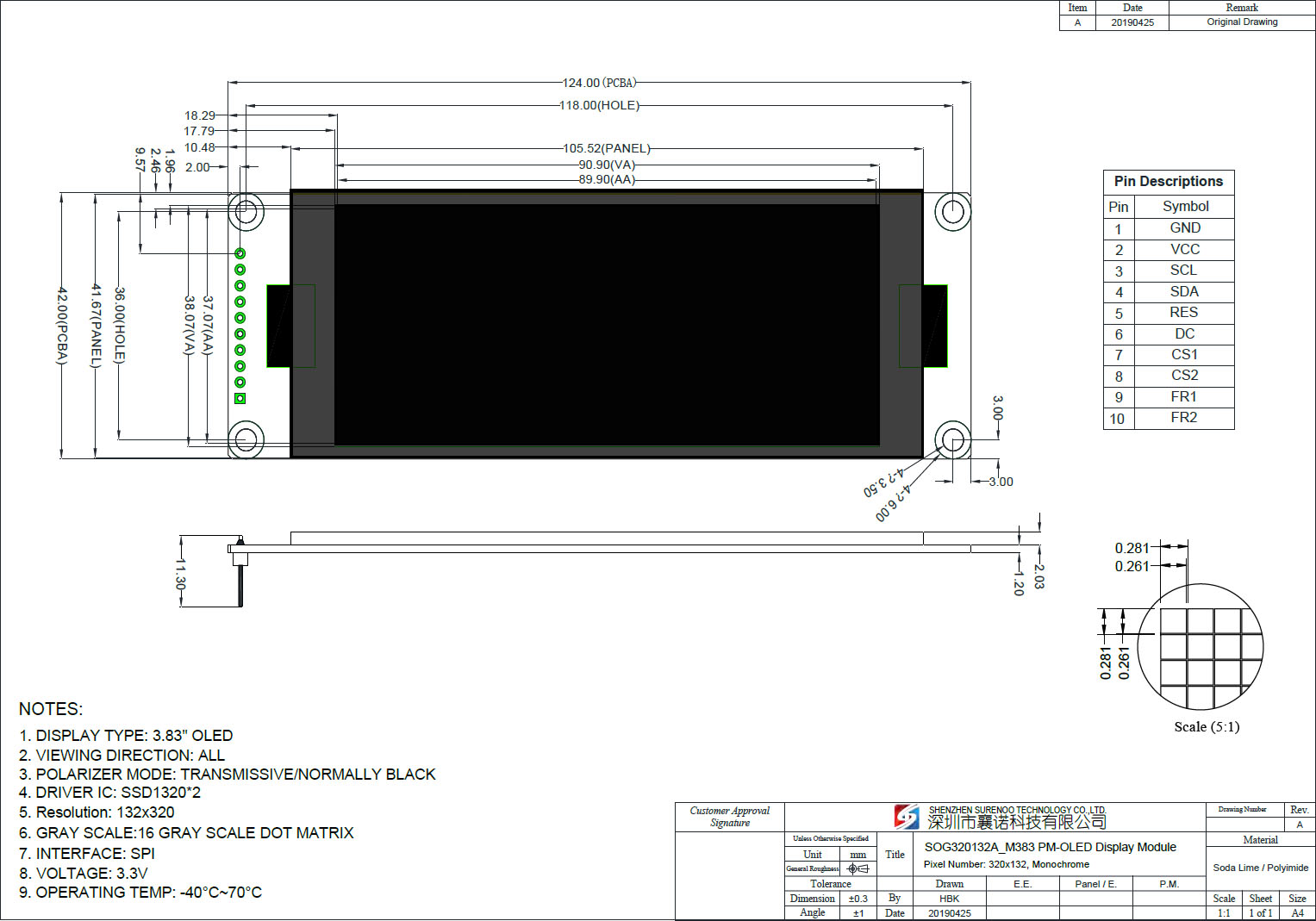

- Outline Drawing

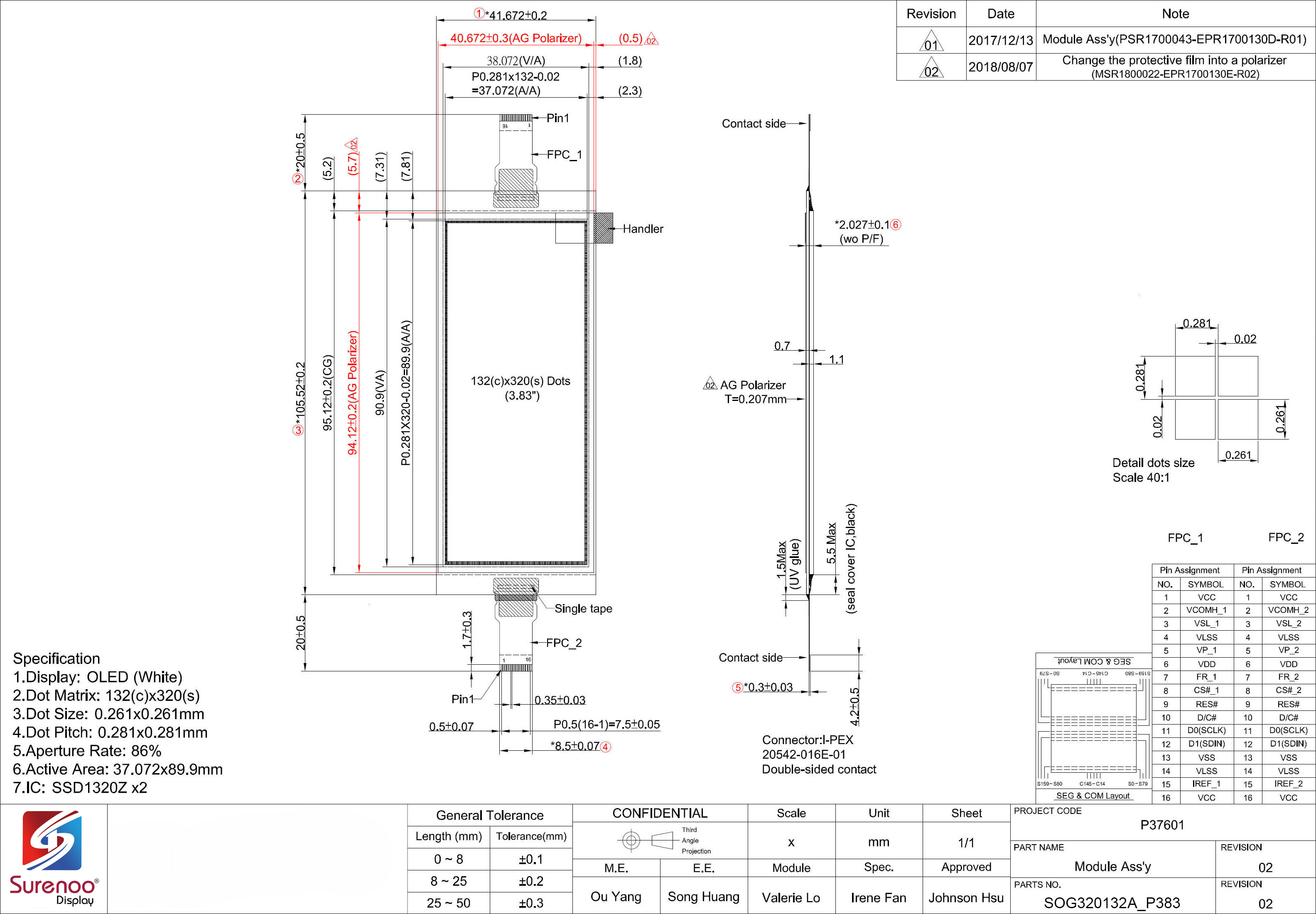

2. OLED Panel: SOG320132A_PM383
- Interface
| Pin No. | Pin Name | Description |
| 1 | GND |
Ground of Logic Circuit
This is a ground pin. It must be connected to ground
|
| 2 | VCC |
Power Supply for OLED
This is a voltage supply pin. It must be connected to source
|
| 3 | SCL | The serial clock input SCL |
| 4 | SDA | The serial data input SDA |
| 5 | RES |
Power Reset for Controller and Driver
This pin is reset signal input.
When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation |
| 6 | DC | Data/Command Control This pin is Data/Command control pin. When the pin is pulled high, the input at SDA is treated as display data. When the pin is pulled low, the input at SDA will be transferred to the command register. |
| 7 | CS1 |
Chip Select
This pin is the chip select pin. Low enable, high disable.
|
| 8 | CS2 |
Chip Select
This pin is the chip select pin. Low enable, high disable.
|
| 9 | FR1 | No Connection |
| 10 | FR2 | No Connection |
2. OLED Panel: SOG320160A_P383 (FPC_1 & FPC_2)
| Pin No. | Pin Name | Description |
| 1 | VCC | Power supply for panel driving voltage. |
| 2 | VCOMH_1 / VCOMH_2 | COM signal deselected voltage level. |
| 3 | VSL_1 / VSL_2 | This is segment voltage (output low level) reference pin. |
| 4 | VLSS | Analog system ground pin. |
| 5 | VP_1 / VP_2 | This pin is the segment pre-charge voltage reference pin. |
| 6 | VDD | Power supply pin for core logic operation. |
| 7 | FR_1 / FR_2 | This pin outputs RAM write synchronization signal. |
| 8 | CS#_1 / CS#_2 | This pin is the chip select input connecting to the MCU. (active LOW) |
| 9 | RES# | This pin is reset signal input. |
| 10 | D/C# | This pin is Data/Command control pin connecting to the MCU. |
| 11 | D0(SCLK) |
The serial clock input: SCLK.
|
| 12 | D1(SDIN) |
The serial data input: SDIN.
|
| 13 | VSS | Ground pin. |
| 14 | VLSS | Analog system ground pin. |
| 15 | IREF_1 / IREF_2 | This pin is the segment output current reference pin. |
| 16 | VCC | Power supply for panel driving voltage. |
Please download the datasheet to get the detailed Pin description.
- Documents
| No. | Item | File Name | File Type | ICON | Date | Description | Mark |
| 1 | Datasheet | SOG320132A_M383 |  |
2013-03-17 | Standard 320*132 Graphic OLED Module | ||
| SOG320132A_P383 |
|
2013-03-17 | Standard 320*132 Graphic OLED Panel | ||||
| 2 | Controller | SSD1320 | |
2008-09-24 | SSD1320 is a COG Graphic 160*160 OLED Controller |
